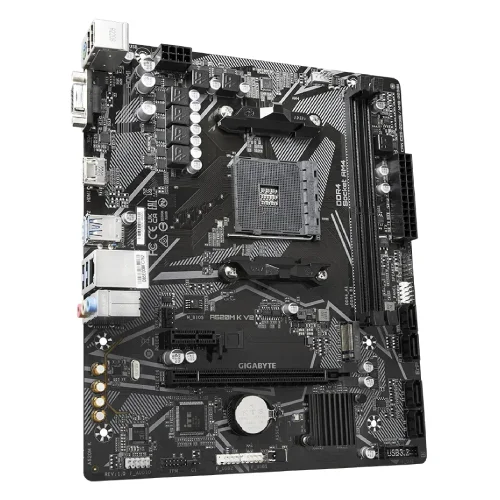

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard

Name: GIGABYTE A520M K V2 AM4 Micro ATX Motherboard
Brand: Gigabyte
SKU: 1806
Availability: InStock

SKU: 1806 Brand: Gigabyte

In stock

Original price was: 8,790.00৳ .Current price is: 8,200.00৳ .

Key Features

Model: A520M K V2
Supported CPU: Ryzen 5000/ 5000G/4000G/ 3000/3000G Series CPU for AM4 Socket
Supported RAM: 2 x DDR4, up to 64GB, 5100(O.C.)
Graphics Output: 1 x HDMI, 1x D-Sub
Features: 1 x M.2 Slot, Realtek GbE LAN

Add to wishlist

Specification

Basic Information
Supported CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset	AMD A520
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket	1 x M.2 connector
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port
USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors
RAID	Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	03-Year Warranty

Description

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard

The Gigabyte A520M K V2 AM4 Micro ATX Motherboard is a powerful and feature-rich Gigabyte motherboard developed exclusively for AMD systems, offering great stability and performance in a small package. This Gigabyte Motherboard uses the efficient A520 chipset to handle a wide range of AMD Ryzen CPUs on the AM4 socket, ensuring seamless multitasking and dependable computing without the need for severe overclocking.

This Gigabyte Micro ATX motherboard is ideal for small to mid-sized builds, with an intelligently designed layout that maximizes workspace while providing a plethora of connectivity options, such as multiple USB ports, versatile PCIe slots, and advanced storage configurations with M.2 support for lightning fast NVMe drives. The Gigabyte A520M K V2 Motherboard, designed with Gigabyte’s commitment to quality, includes a finely tuned power delivery system and an intuitive, user-friendly BIOS, which, when paired with its efficient thermal design, enable stable operation under sustained workloads.

This makes it an excellent foundation for home offices, low-cost gaming rigs, and entry-level content creation systems, solidifying its position as a smart and dependable choice in the competitive Gigabyte Micro ATX motherboard market.
